Explore our wide range of Grundfos Hydro Pneumatic Pumps, designed for reliable water pressure boosting in residential, commercial, and industrial applications.

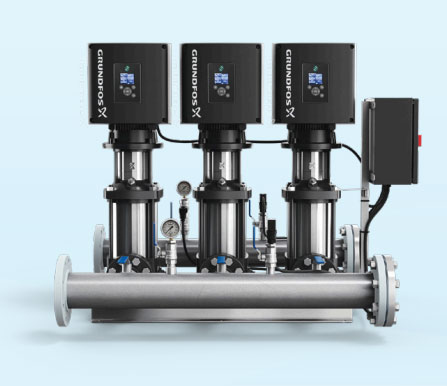

The Grundfos Hydro Multi-E is a smart, high-performance booster system with built-in controls, designed for reliable and energy-efficient pressure boosting in apartment buildings, group housing, villa projects, irrigation systems, and fire hydrants.
❖ Built-in controls with full redundancy
❖ Remote monitoring with Grundfos GO
❖ High-efficiency IE5 motors
❖ Eliminates water hammer
❖ Multi Master system control redundancy
❖ BMS/SCADA interface via Grundfos CIM
❖ Apartment buildings
❖ Group housing
❖ Villa projects
❖ Irrigation & gardening
❖ Fire hydrants
❖ Max Flow: 140 m³/hr
❖ Max Head: 145 meters
❖ Power Rating: 0.55 kW to 11 kW

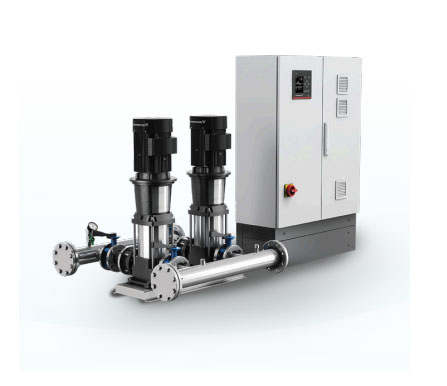

The Grundfos Hydro MPC is a premium pressure boosting solution designed for maximum reliability, energy savings, and ease of operation. Ideal for apartment buildings, group housing, villa projects, irrigation, and gardening, it delivers consistent performance with intelligent control features.
❖ Wide range to fit any duty point
❖ Pre-configured for quick installation
❖ Energy-saving operation – stops during low demand
❖ Reliability with system redundancy
❖ Supports secondary & multi-sensor setups
❖ CU 352 controller for up to 6 pumps with digital & analogue outputs
❖ Apartment buildings
❖ Group housing
❖ Villa projects
❖ Irrigation & gardening
❖ Max Flow: 1088 m³/hr
❖ Max Head: 155 meters
❖ Power Rating: up to 75 kW

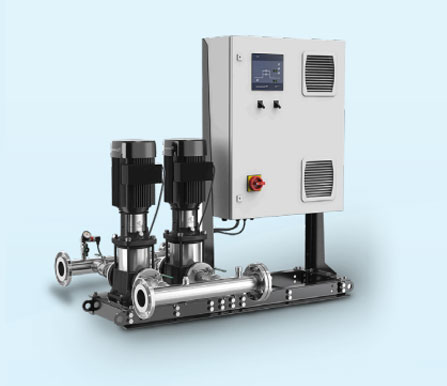

The Grundfos Hydro Multi-B is a compact and efficient booster system designed to maintain constant water pressure regardless of flow fluctuations. Ideal for apartment buildings, villas, group housing, irrigation, and gardening, it delivers reliable performance with easy installation and operation.
❖ Consistent pressure under varying demand
❖ Compact design with low footprint
❖ Simple installation, operation & maintenance
❖ Apartment buildings
❖ Villas & group housing
❖ Irrigation & gardening
❖ Easy system monitoring & control
❖ Constant pressure control
❖ Pump cascade control & automatic changeover
❖ Stop function for energy savings
❖ Max Flow: 108 m³/hr
❖ Max Head: 125 meters
❖ Power Rating: up to 7.5 kW
The Grundfos Hydro Multi-S is a compact and efficient booster system with two or three CM/CR pumps, designed for consistent water pressure in independent homes, group housing, apartment blocks, and terrace boosting.
❖ Automatic cascade control for energy efficiency
❖ Automatic pump changeover for balanced usage
❖ Dry-running protection
❖ Start-up delay between pumps
❖ Motor protection via thermal overload relay
❖ Short-circuit protection with fuses
❖ Competitive solution in fixed-speed booster market
❖ Independent homes / group homes
❖ Apartment blocks
❖ Terrace booster systems
❖ Max Flow: 69 m³/hr
❖ Max Head: 103 meters
❖ Power Rating: Up to 7.5 kW
Grundfos is a global leader in pumping solutions, and their hydro pneumatic systems are no exception. These advanced pumps maintain constant pressure across all usage points, ensuring a seamless water supply experience.
Constant Pressure Output – Advanced control technology maintains uniform water pressure, even with fluctuating demand.
Energy Efficient Design – Equipped with Variable Frequency Drives (VFD), these systems consume less power and lower electricity costs.
Silent Operation – Operates with minimal noise, making it ideal for residential complexes, hospitals, and commercial spaces.
Space-Saving Units – Compact and modular designs fit easily in basements, pump rooms, or service areas.
Built-in Protection – Features like dry-run protection, overload safeguards, and auto-reset ensure safety and durability.
Hydro Multi-E uses a PI controller to adjust speed-controlled pumps, ensuring accurate pressure delivery at every flow rate.
Minimizes pipe friction losses, reducing water leakage, power consumption, and overall operational costs—ideal for consistent comfort.
Easily integrates with BMS or SCADA via Grundfos CIM interfaces, offering open network compatibility and real-time monitoring for enhanced reliability.
With VFD-driven pumps, automatic cascade control, and high-efficiency motors, Hydro Multi-E systems deliver powerful performance with low electricity usage.
| Parameter | Details |
| Brand | Grundfos |
| System Type | Hydro Pneumatic Pressure Boosting System |
| Pump Configuration | Single / Multiple Pump Sets (2–4 pumps) |
| Control Panel | VFD-Based / PLC Automatic Options |
| Power Rating | 1 HP to 50 HP / Up to 4 × 11 kW |
| Max Flow Rate | Up to 140 m³/h (CRE & CRIE) / 80 m³/h (CME) |
| Max Head | Up to 100 meters |
| Pressure Rating | PN10 & PN16 |
| Material | SS / Cast Iron (model-dependent) |
| Liquid Temperature | 0°C to 60°C |
| Ambient Temperature | 0°C to 50°C |
| Built-in Protections | Dry Run, Overload, Phase Failure |
| Applications | Residential, Commercial, Industrial |
| Origin | Imported / Made in India |
