We offer a wide selection of AO Smith Heat Pump models to meet different hot water needs, from small residential applications to large-scale commercial projects. Each model is designed for superior efficiency, durability, and reliable performance.

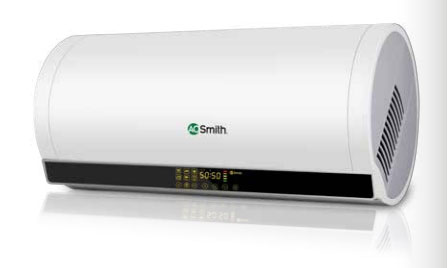

The AO Smith HPW Series is designed for high-efficiency water heating with advanced energy-saving features. Ideal for both residential and light commercial applications, this series delivers consistent hot water while reducing power consumption. With a patented AES energy-saving system, R134a eco-friendly refrigerant, and wall-mounted design, it combines performance, sustainability, and space-saving convenience.
❖ Heat pump water temperature 55˚C; Max water temperature 75˚C
❖ Input 200W, COP 2.6 for energy efficiency
❖ Dual elements for fast recovery
❖ Patented AES energy-saving system
❖ Timer setting and remote control for convenience
❖ PS safety system for added protection
❖ R134a green refrigerant
❖ Wall-mounted design for compact installation
| Model | HPW-60A2 | HPW-80A2 |
| Rated Volume (L) | 60 | 80 |
| Rated Voltage (V) / Rated Frequency (Hz) | 220 / 50 | 220 / 50 |
| Rated Input Power (W) / Rated Current (A) – Efficiency Mode | 210 / 0.95 | 210 / 0.95 |
| Rated Input Power (W) / Rated Current (A) – Hybrid Turbo Mode | 2200 / 10 | 2200 / 10 |
| Rated Input Power (W) / Rated Current (A) – MAX Mode | 3000 / 13.7 | 3000 / 13.7 |
| Heating Capacity (W) – Efficiency Mode | 540 | 540 |
| Heating Capacity (W) – Hybrid Turbo Mode | 2540 | 2540 |
| Heating Capacity (W) – MAX Mode | 3000 | 3000 |
| Inner Tank Rated Pressure (MPa) | 0.8 | 0.8 |
| Range of Water Temperature (°C) | 35–75 | 35–75 |
| Environment Range of Energy-Saving Mode (°C) | 10–44 | 10–44 |
| Dimensions (A × B) (mm) | 837 × 473 | 992 × 473 |
| Net Weight (kg) | 42 | 45 |

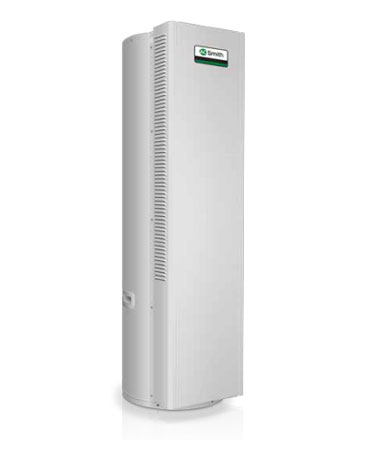

As an authorized dealer and trusted supplier of AO Smith HPI Series Heat Pumps, we bring you a premium range of energy-efficient water heating solutions for residential, commercial, and hospitality applications. The HPI Series is engineered to deliver consistent hot water while minimizing power consumption, making it an ideal choice for those seeking both performance and savings. With a high COP of 3.8, patented AES energy-saving system, and advanced safety features, these heat pumps ensure reliable operation in diverse climate conditions. Perfect for hotels, hospitals, villas, and homes, the AO Smith HPI Series combines innovative technology with long-term durability.
❖ Heat pump water temperature up to 55˚C, max water temperature 75˚C.
❖ Heat pump input 500W, COP 3.8 for high efficiency.
❖ Two electric heating elements for quick recovery.
❖ Patented AES Energy Saving System.
❖ Convenient timer setting and remote control operation.
❖ PS Safety System for added protection.
❖ Eco-friendly R134a Green Refrigerant.
| Model | HPI-40C1.0A | HPI-50C1.0A |
| Rated Volume (L) | 150 | 180 |
| Voltage / Frequency (V/Hz) | 220~ / 50 | 220~ / 50 |
| Rated Input / Current (W/A) – Efficiency Mode | 500 / 2.5 | 500 / 2.5 |
| Rated Input / Current (W/A) – Hybrid Turbo Mode | 2500 / 11.5 | 2500 / 11.5 |
| Output (W) – Efficiency Mode | 1900 | 1900 |
| Output (W) – Hybrid Turbo Mode | 3900 | 3900 |
| Water Temperature Range (°C) | 35–75 | 35–75 |
| Ambient Temperature Range for Efficiency (°C) | 7–43 | 7–43 |
| Tank Rated Pressure (MPa) | 1.03 | 1.03 |
| Dimension – Height (A) (mm) | 1530 | 1565 |
| Tank Diameter (Ø) (mm) | 520 | 520 |
| Tank Weight (kg) | 89 | 98 |
The AO Smith CAHP-3HP Series is designed for commercial and large-scale hot water needs, making it perfect for hotels, resorts, hospitals, hostels, and industrial facilities. With its unique heat exchanger design, this heat pump delivers water temperatures up to 65˚C efficiently. It offers energy-saving, fast heating, and multiple operation modes including electric back-up and standard mode, giving users complete flexibility.
❖ Unique heat exchanger design with water heating up to 65˚C.
❖ Energy-saving performance with fast heating, electric back-up, and standard modes to choose from.
❖ Smart control technology to prevent cold water mixing.
❖ LCD display for easy operation and monitoring.
❖ Environment-friendly R134a green refrigerant.
❖ Integrated design for outdoor installation.
| MODEL | CAHP-120C-12 |
| Rated Volume [L] | 430 |
| Rated Voltage [V] / Frequency [Hz] | 220 / 50 |
| Rated Power of Heat Pump [kW] | 2.25 |
| Rated Heating Capacity [kW] | 8.5 |
| Electric Heating Power [kW] | 12 |
| Maximum Input Power [kW] | 15.1 |
| Maximum Heat [kW] | 20 |
| Maximum Current [A] | 380V/3N/50Hz: 31.5 220V/1N/50Hz: 78.5 |
| Maximum Outlet Water Temp [°C] | 65 |
| Temperature Control [°C] | 35–82 |
| Flow Rate [L/h] | Efficiency/Standard Mode: 182 High Demand/Winter Mode: 439 |
| External Unit Dimensions [mm] | A: 1770 B: 1002 C: 600 D: Ø711 |
| Net Weight [Kg] | 264 |
AO Smith is a globally recognized leader in advanced water heating technology. Here’s why their heat pumps are the preferred choice for energy-efficient hot water solutions:
High Energy Efficiency – Designed with advanced heat pump technology to deliver maximum output while minimizing power consumption.Consistent Hot Water Supply – Maintains a steady water temperature, ideal for residential, commercial, and hospitality applications.Advanced Safety Features – Equipped with PS safety system, overheat protection, and corrosion-resistant components for worry-free use.Durable Build Quality – Built with high-quality materials ensuring long life and minimal maintenance.Versatile Applications – Perfect for hotels, hospitals, villas, apartments, and industrial setups.Smart Controls – Features AES energy-saving system, timer settings, and remote control for user convenience.Quick Recovery – Dual electric heating elements for faster hot water availability during peak demand.AO Smith Heat Pumps are designed for a wide range of hot water applications, combining energy efficiency with reliable performance:
Compact and energy-efficient booster pumps for villas, apartments, and housing societies.
Reliable water supply, pressure boosting, and circulation systems for malls, office complexes, and commercial facilities.
Silent and efficient pumps for pressure boosting, hot water circulation, and greywater management in hotels and resorts.
Hygienic and safe pumping systems for water supply, HVAC systems, and RO-based water treatment in medical institutions.
Reliable pumping systems for drinking water, sanitation, canteens, and hostels ensuring uninterrupted supply.
AO Smith Heat Pump Water Heaters use advanced vapor compression technology, similar to a household refrigerator but in reverse, to efficiently heat water. The main components are the compressor, expansion valve, and two heat exchangers – evaporator and condenser.
Heat Absorption – The refrigerant inside the evaporator is colder than the surrounding air, allowing it to absorb heat from the outside environment and evaporate into vapor.Compression – The vapor passes through the compressor, where it is pressurized and its temperature rises significantly.Heat Transfer – The hot vapor enters the condenser, releasing heat to the water stored in the tank as it condenses back into liquid form.Cycle Reset – The refrigerant flows through the expansion valve, reducing its pressure and temperature before returning to the evaporator to repeat the cycle.
